Large-Dia High-Buoyancy Floating Mooring Buoy (Offshore) | Anti-Salt Spray Carbon/Stainless Steel, IMO MSC.1/Circ.1580, for Oil Rigs/FPSO
주요 특성
브랜드 이름:
Henger
모델 번호:
004
원산지:
중국
인증:
ISO 9001
최소 주문 수량:
1
가격:
500
공급능력:
50 pcs/주
배달 시간:
근무일 15-30 일
지불 조건:
l/c, d/a, d/p, t/t
표준 포장:
누드 포장
제품 요약
Large Diameter Marine Offshore Steel Floating Mooring Buoy Product Description Steel mooring buoys stand as pivotal anchoring infrastructure within port facilities, meticulously engineered to reliably accommodate vessels across a spectrum of tonnages. Their operational framework is defined by ...
제품 맞춤 속성
강조하다
큰 디아 고강도 매어링 보이
,해상 철강 매어링 보이 보증
,석유 기구용 반염 스프레이 매어링 보이
제품 이름:
펜던트 부표
재료:
강철, 에바 충전
크기:
맞춤형 크기
보증:
12 개월
색상:
맞춤형 색상
로고 서비스:
사용자 정의
등록 상표:
Henger
기원:
중국
설계:
모듈 식 디자인
제품 설명

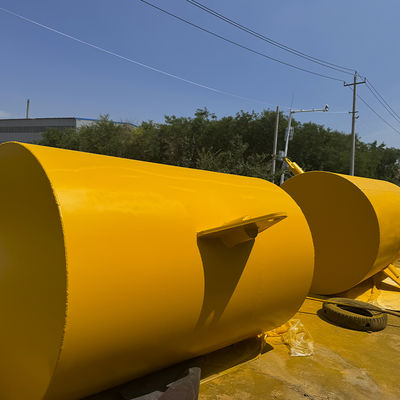

Large Diameter Marine Offshore Steel Floating Mooring Buoy
Steel Mooring Buoy Technical Parameter
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |

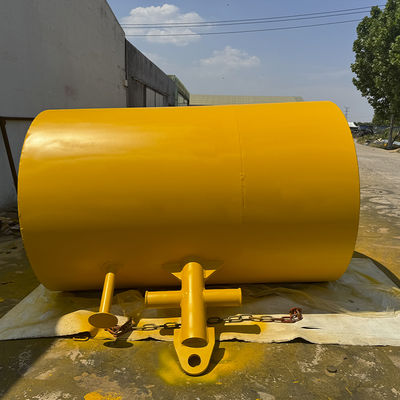

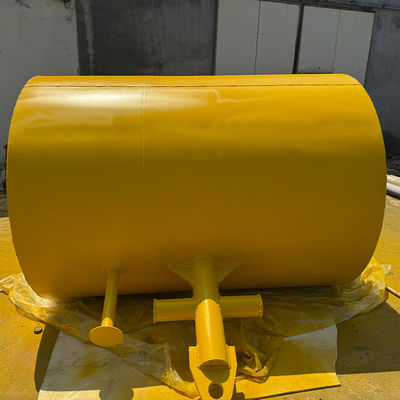

Anchor Pendant Buoy
Anchor pendant buoys come in an extensive range of sizes, offering options such as suitcase-style, modular, non-modular, custom-made, and standard configurations. All units are equipped with removable central steelwork, which is tailored to meet specific customer requirements—typically featuring either a handling crucifix/pad eye arrangement or a through hawse designed for use with anchor wire instead of chain.
Anchor Pendant Buoy Technical Parameters
|
Model
|
Reserve Buoyancy (kg) |
Diameter (mm) |
Float Length (mm) |
Overall Length (mm) |
Weight (kg) |
|
HE-APB1000
|
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000
|
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000
|
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000
|
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000
|
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000
|
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000
|
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
